Wall Mount Junction Box
(for Occulus Moto-Dome)

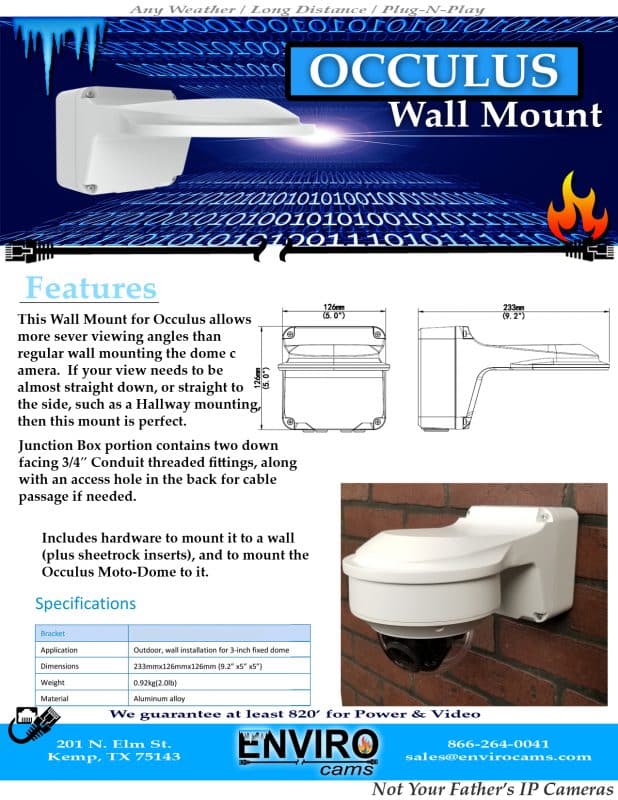

This Wall Mount with integrated Junction Box is made to fit our Occulus Moto-Dome. (NOTE: This can also be purchased with the Occulus Dome from the Occulus page – see link above).
This Wall Mount for Occulus allows more sever viewing angles than regular wall mounting the dome camera. If your view needs to be almost straight down, or straight to the side, such as a Hallway mounting, then this mount is perfect.
This Wall Mount comes with the hardware to mount it to a wall (plus sheetrock inserts), and also the machine screws needed to mount the Occulus Moto-Dome to it.

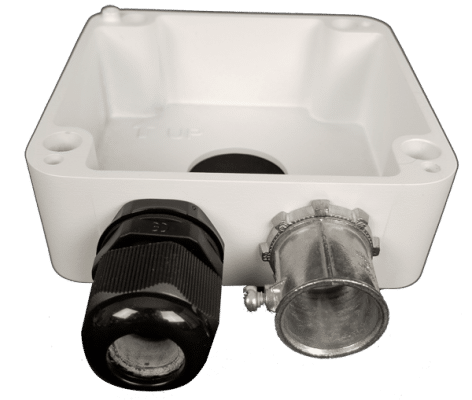

The Junction Box portion contains two down facing 3/4″ Conduit threaded fittings connections. There is also an access hole in the back of the junction box that may be used for cable passage if needed (normally sealed by foam isolation pad on back of junction box).
This wall mount with Junction Box measures approximately 10″ from the top front back to the wall, and the junction box portion is 4.9″ by 4.9″ square.
1 Year Warranty
This Mount fits the Following Cameras
- Occulus Moto Dome
Dual 3/4″ Threaded Conduit connections
Fits any 3/4″ NPS Conduit fittings. Normally sealed with the included conduit caps when not in use.

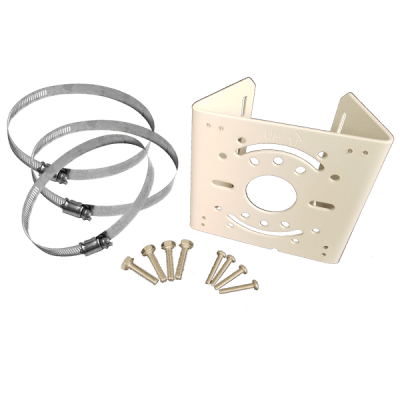

Fits This Pole Mount
Do You Need to Pole Mount this Wall Mount Junction Box?
.This Pole Mount – available with bands for poles up to 4″ or for poles up to 8″ in diameter – is made to mount this Wall Mount Junction Box for Occulus (it will also fit the Electrically Isolated Occulus Junction Box too).
